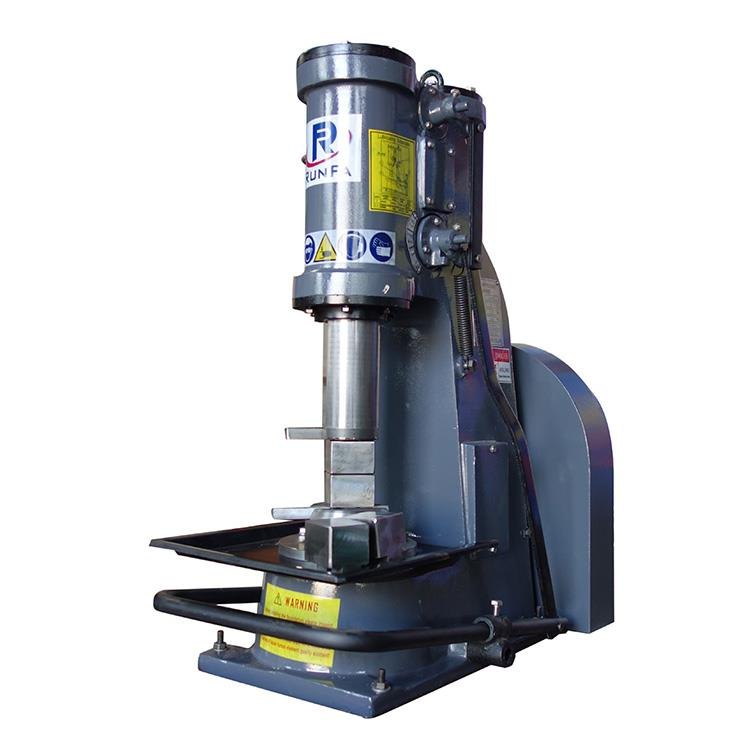

Pneumatic Forging Hammer C41-150
Available on order৳800,000
Pneumatic forging hammer. Heavy-duty C41 series.
Specifications
| Weight of falling parts | 150 kg |
|---|---|
| Max. blow energy | 2.5 kJ |
| Blows per minute | 180 /min |
| Die centre to frame | 350 mm |
| Distance between top and bottom die | 370 mm |
| Top & bottom die surface | 200x87 mm |
| Max. forging, round | Ø145 mm |
| Max. forging, square | 130x130 mm |
| Motor power | 18.5 kW (1440 rpm) |
| Overall dimension (L x W x H) | 2080x1240x2350 mm |
| Anvil block weight | 1800 kg |
| Hammer / total weight | ~5060 kg (hammer) |
